Optimizing Space Utilization in a Multi-Goods Warehouse-Mobile Racking Systems
In modern logistics and warehousing, maximizing storage density without compromising operational efficiency is a critical challenge. For a multi-goods warehouse of approximately 400 square meters, employing a tailored mobile racking system offers an intelligent solution to significantly enhance space utilization. By designing distinct zones based on cargo characteristics, this approach ensures that each category of goods is stored in the most space-efficient and accessible manner.

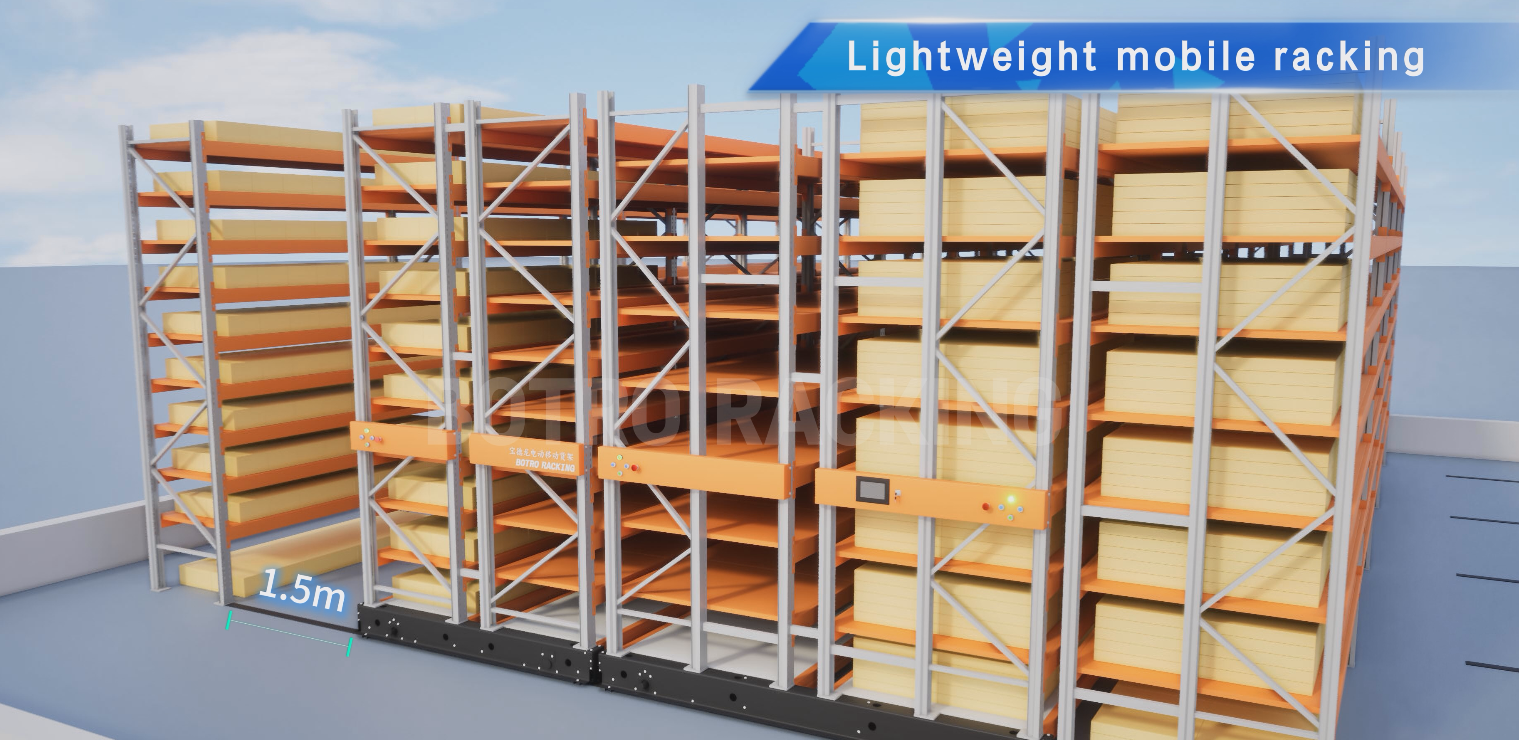

1. Light Goods Zone: Customized Light-Duty Mobile Racking
For lightweight items that are primarily handled manually, a customized light-duty mobile racking system is implemented. These racks feature adjustable and movable racks, which can be shifted in single or multiple columns quickly and smoothly. With only a 1.5-meter aisle reserved for manual access, storage density is maximized. This design is ideal for small parts, electronics, or retail items, allowing high-density storage while maintaining easy retrievability.

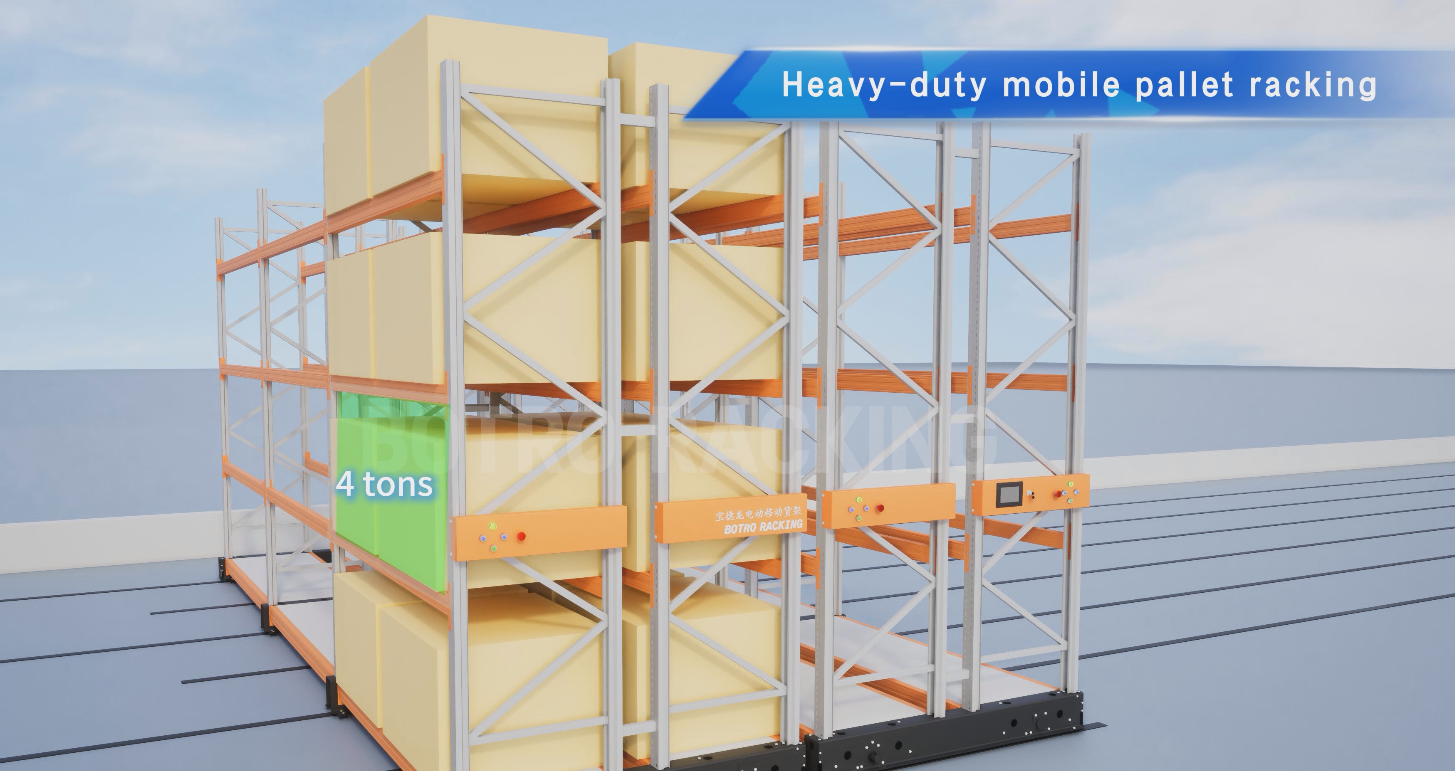

2. Heavy Goods Zone: Heavy-Duty Mobile Pallet Racking
Heavier items, often handled by forklifts, are stored in a heavy-duty mobile pallet racking system. Consisting of two rows, these racks can be customized to support substantial loads—up to 2 tons per level. A 5-meter aisle is allocated for forklift operations, ensuring safe and efficient movement. By utilizing mobile bases, the racks can be compacted when not accessed, dramatically reducing aisle space and increasing storage capacity for palletized goods.

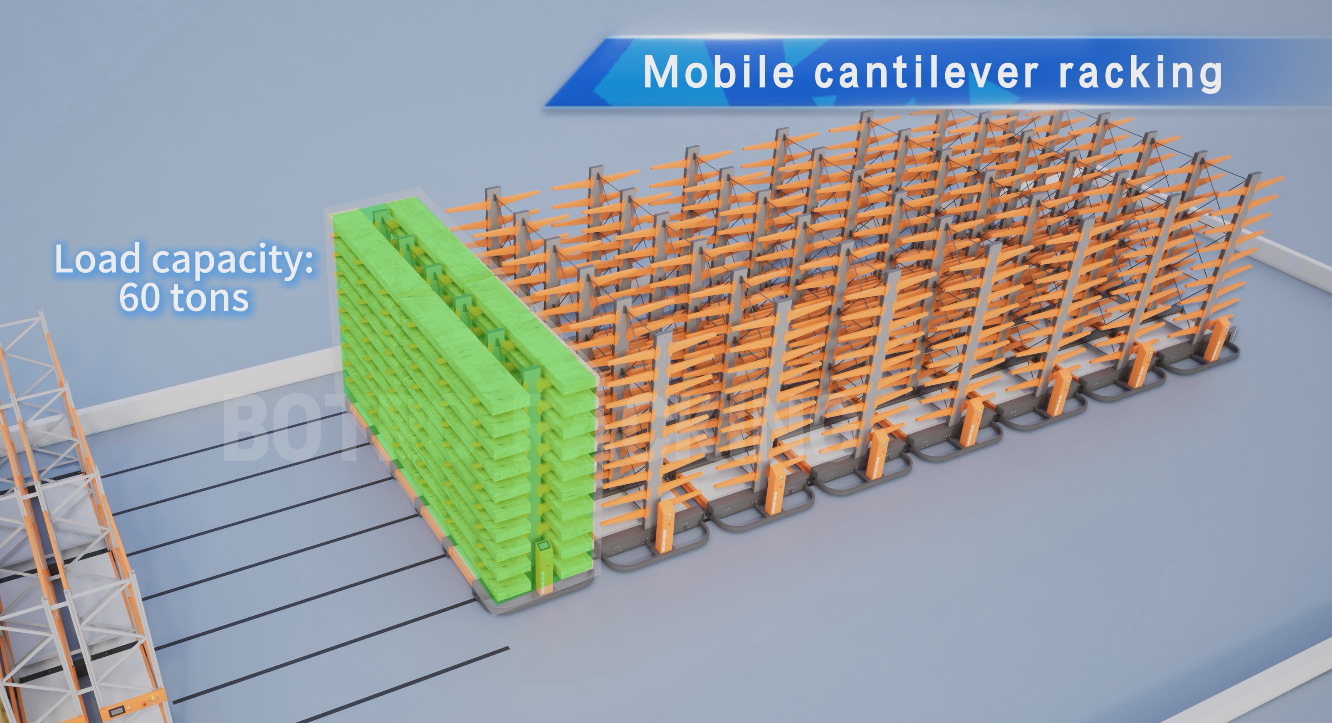

3. Long Materials Zone: Mobile Cantilever Racking
For storing lengthy materials exceeding 3 meters in length, a mobile cantilever racking system is installed. This zone comprises eight columns, each with ten levels. Each arm can support up to 500 kg, with a single-level capacity of 3 tons and a full-column capacity of 60 tons. The racks can be moved individually or in groups, and they share the same 5-meter aisle with the heavy goods zone. This shared aisle strategy further optimizes floor space, making it possible to store large, bulky items without sacrificing accessibility.
4. Integrated Layout and Space Efficiency

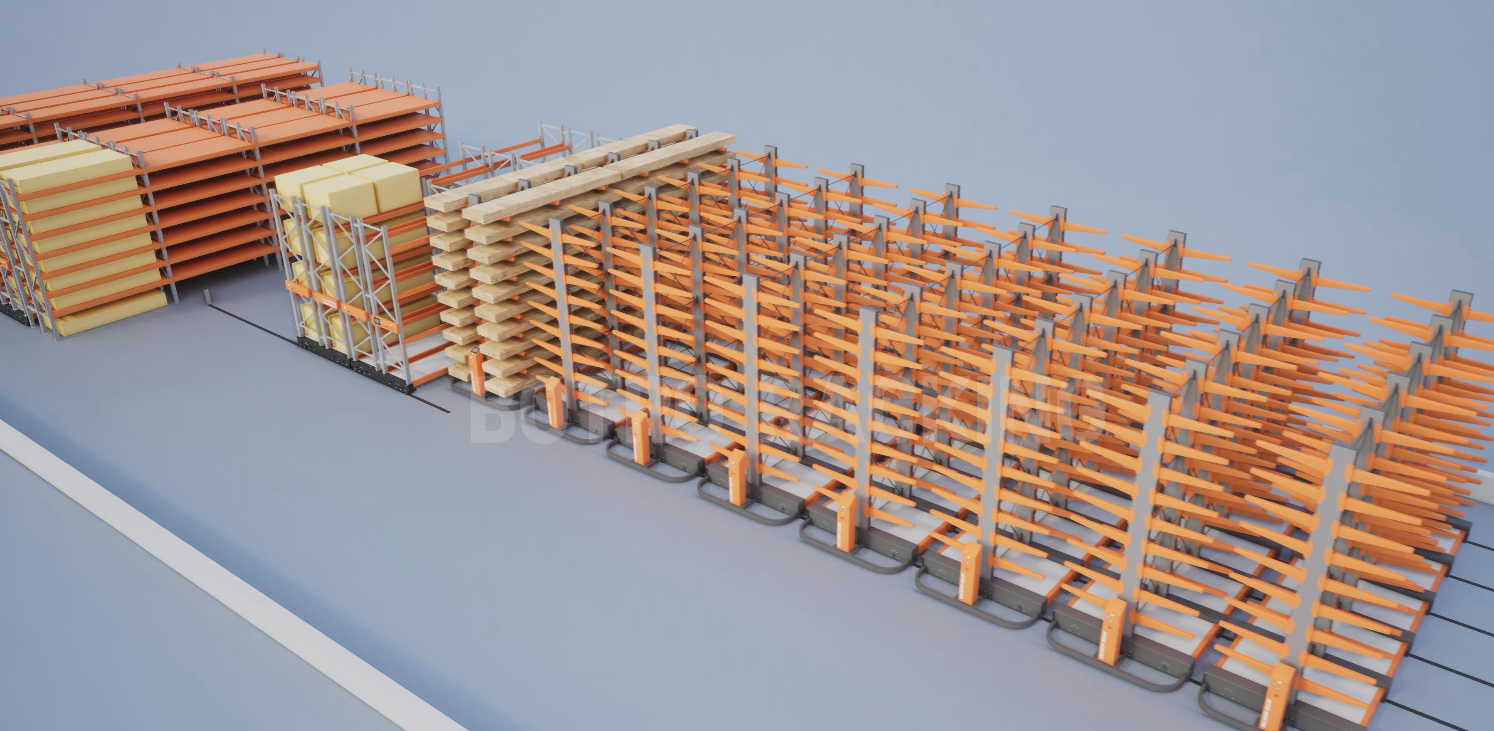

The warehouse layout is strategically planned so that the heavy mobile racking zone and the mobile cantilever racking zone share a common 5-meter aisle. This integration minimizes redundant circulation space and creates a flexible storage environment. During operations, only the necessary aisle is opened, while other rack sections remain compactly arranged. This dynamic arrangement can increase effective storage area by up to 80% compared to traditional fixed-aisle systems.
By adopting a zoned, mobile racking solution tailored to different cargo types—light, heavy, and long materials—this 400-square-meter warehouse achieves remarkable space utilization without compromising on safety or workflow efficiency. The combination of narrow-aisle storage for light items, high-capacity movable racks for heavy goods, and versatile cantilever systems for long materials exemplifies a smart, adaptive approach to modern warehousing. Such systems not only maximize storage density but also offer scalability and flexibility to meet evolving inventory needs.
