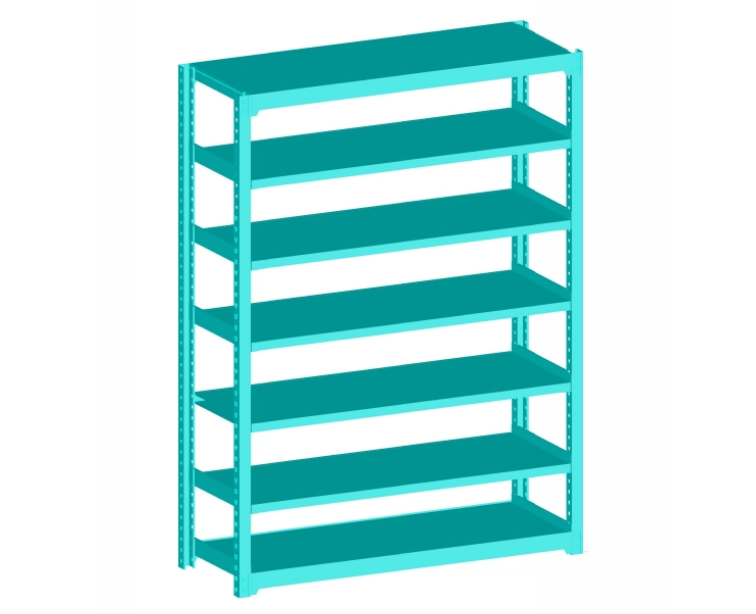

Boltless Shelving system is an ideal blend of robust support and adjustability ,its professional look and sturdy design make them highly-suited to any place of business.
Column Pitch:50mm
Color: RAL color system
Warranty: 5 years
Aftersale Service:
Response within 24 hours,and replace free damaged
Overview:
The boltless shelf is usually used for hand-loaded application and it’s convenient to assemble or disassemble.The components of boltless shelf include: upright column, beam, top support bar, middle support bar and steel panel.

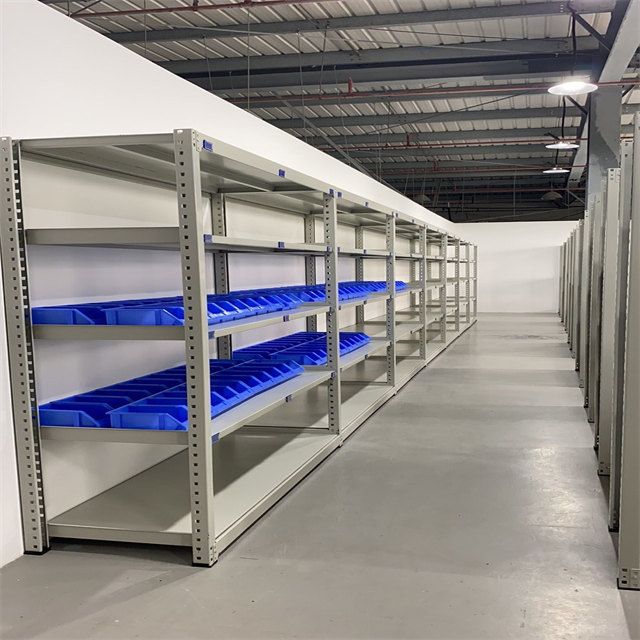

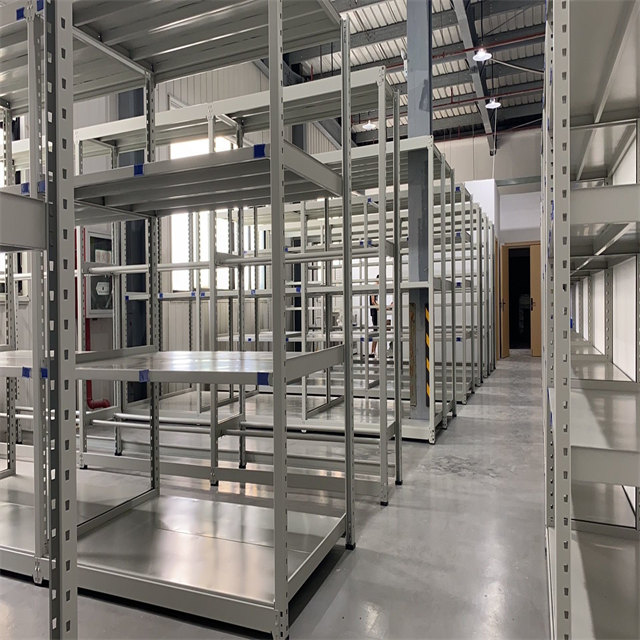

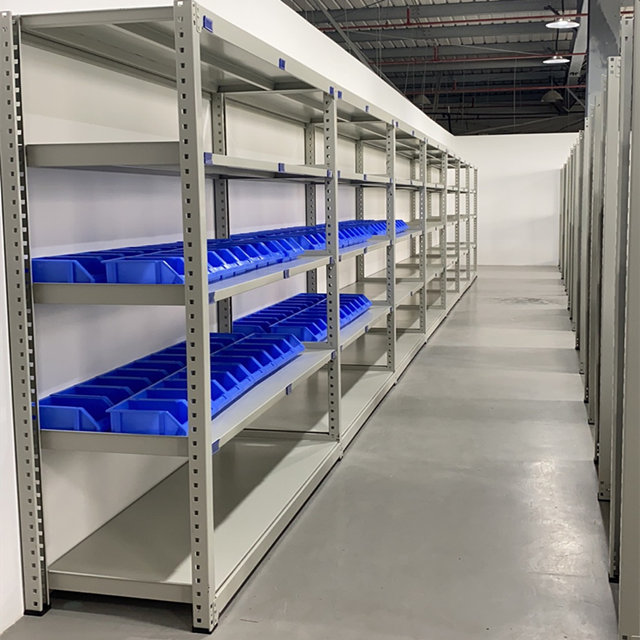

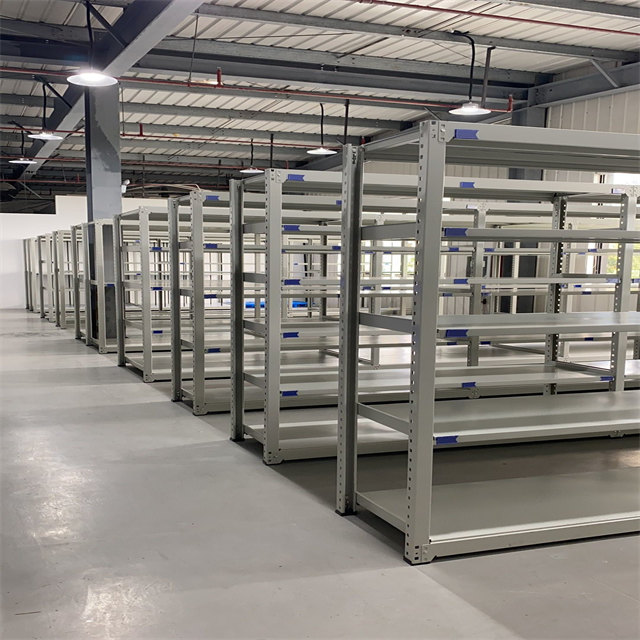

Its load capacity is about 150-300kg/layer which is suitable for virtually every kind of items from small component to heavy carton.This type of shelf is widely used in warehouse, distribution center, spare-parts store and some production line.
Advantages:
1. Boltless shelf has better price among same load capacity shelves.
2. This kind of rack is not only simple in structure but also easy to install.No nuts and bolts required.
3. No bracing allows for easy access from all the four sides.
4. Customizable for your facility
More details you may need
Design | Professional design for your requirement and offer you the free CAD drawing |
Trade terms | FOB NANJING/FOB SHANGHAI;CIF;CFR;EXW;DDU |
Payment terms | T/T, 30% prepaid and balance payment before shipping, L/C at sight |
Quick Delivery | Big production capacity allow us in a position to make quick delivery. |
Materials | Q235B Steel |
Color | Usually do orange beams and blue columns, but we also do customized, according to RAL color system |
Capacity | 100-300kg/level |
Price | Factory EXW price |
MOQ | 1*20GP container, less than 23tons, volumn less than 28CBM |
Surface treatment | Powder Coated/Galvanized |
Main market | North America, Middle America, Middle East, Africa, Australia |
Certification | We can provide ISO9001/ISO14001/CE/SGS certificates |
Package | Standard export packaging, binding + plastic film + plastic strip + anti-extrusion bubble mold |

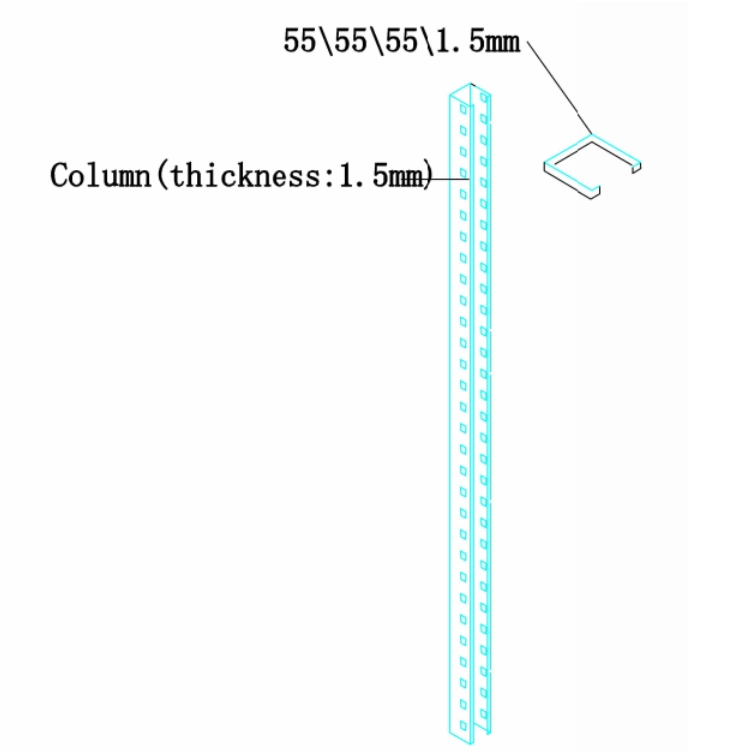

1. Column Specifications

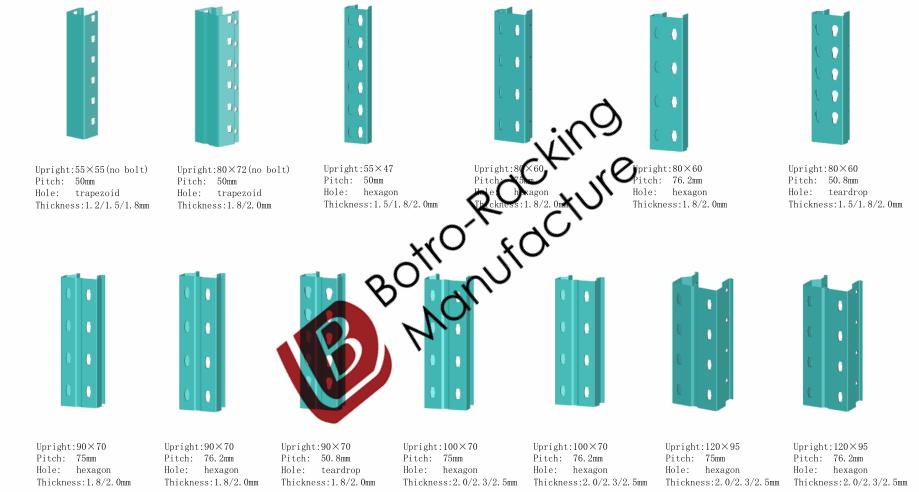

When you inquiry about boltless shelving system, you will find that most of other suppliers’ light duty shelving use butterfly hole while we use trapezoid hole for the column.
As a contrast,the trapezoid hole has better load capacity.Proven by time, it’s more durable and stable.
2. Steel Panel of Boltless Shelving
Boltless shelving is available with particle board, white laminated particle board or flat wire grid decking. A wide range of sizes are available for panels.

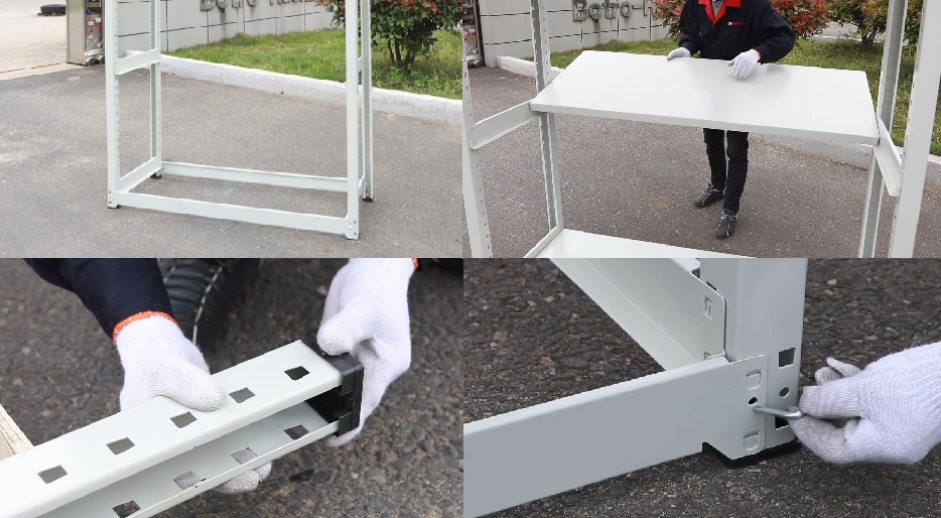

3. Installation for Boltless Shelf
The following steps could guide you to install the column, beam, top bar, middle bar and steel panel, If you still have problems, I will share the video with you.
