Rack Size:15 meters long and 13 meters deep
Color: RAL color system
Warranty: 5 years
Aftersale Service:Response within 24 hours,and replace free damaged

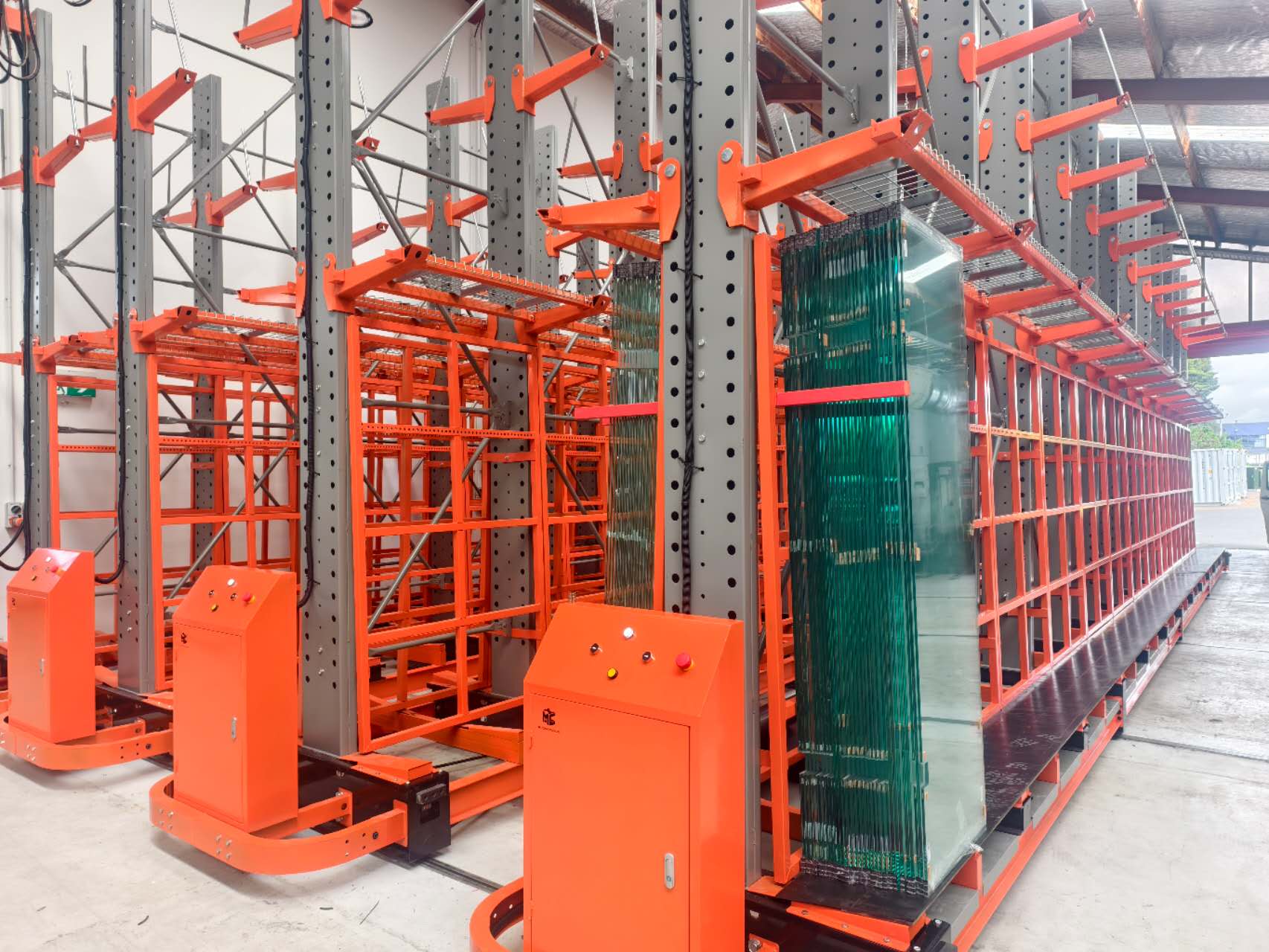

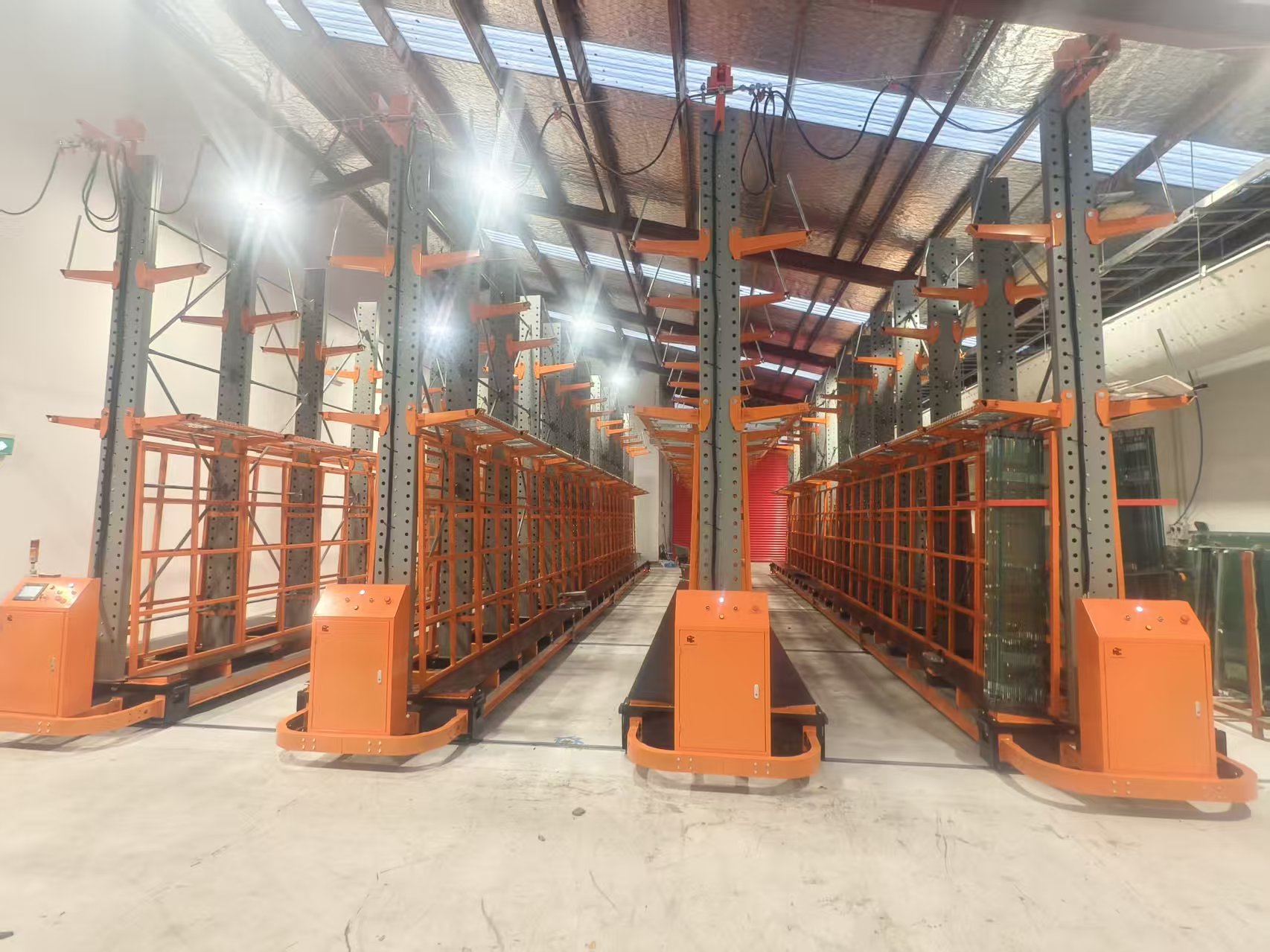

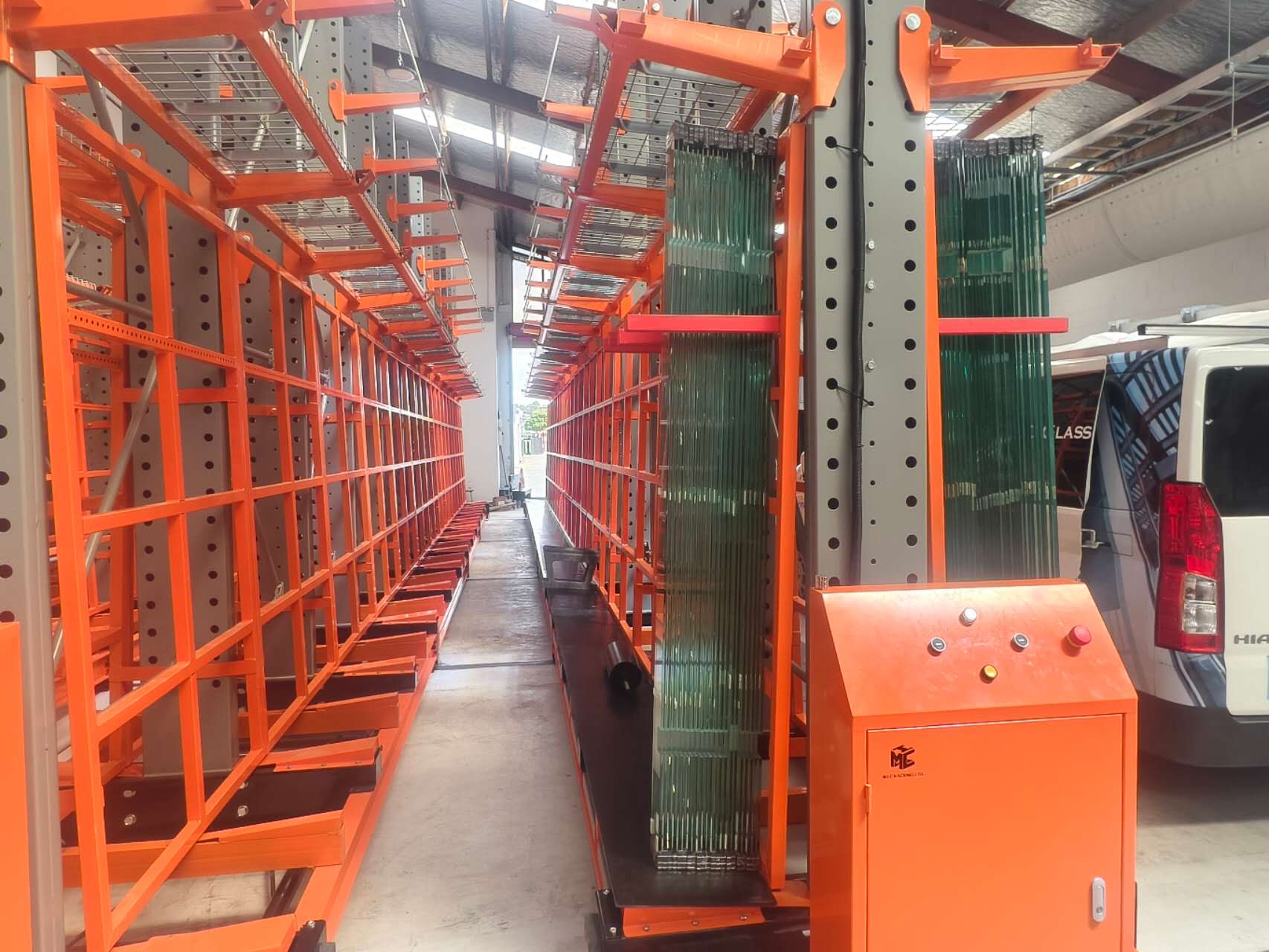

This mobile cantilever racking system is applied in the glass manufacturing industry，with four columns of mobile cantilever racking have been customized, with a length of 15 meters and a depth of 13 meters. There are four layers for storing goods, with the bottom layer storing glass and the top three layers storing long materials. Each column of mobile cantilever racks can carry 50 tons of materials.

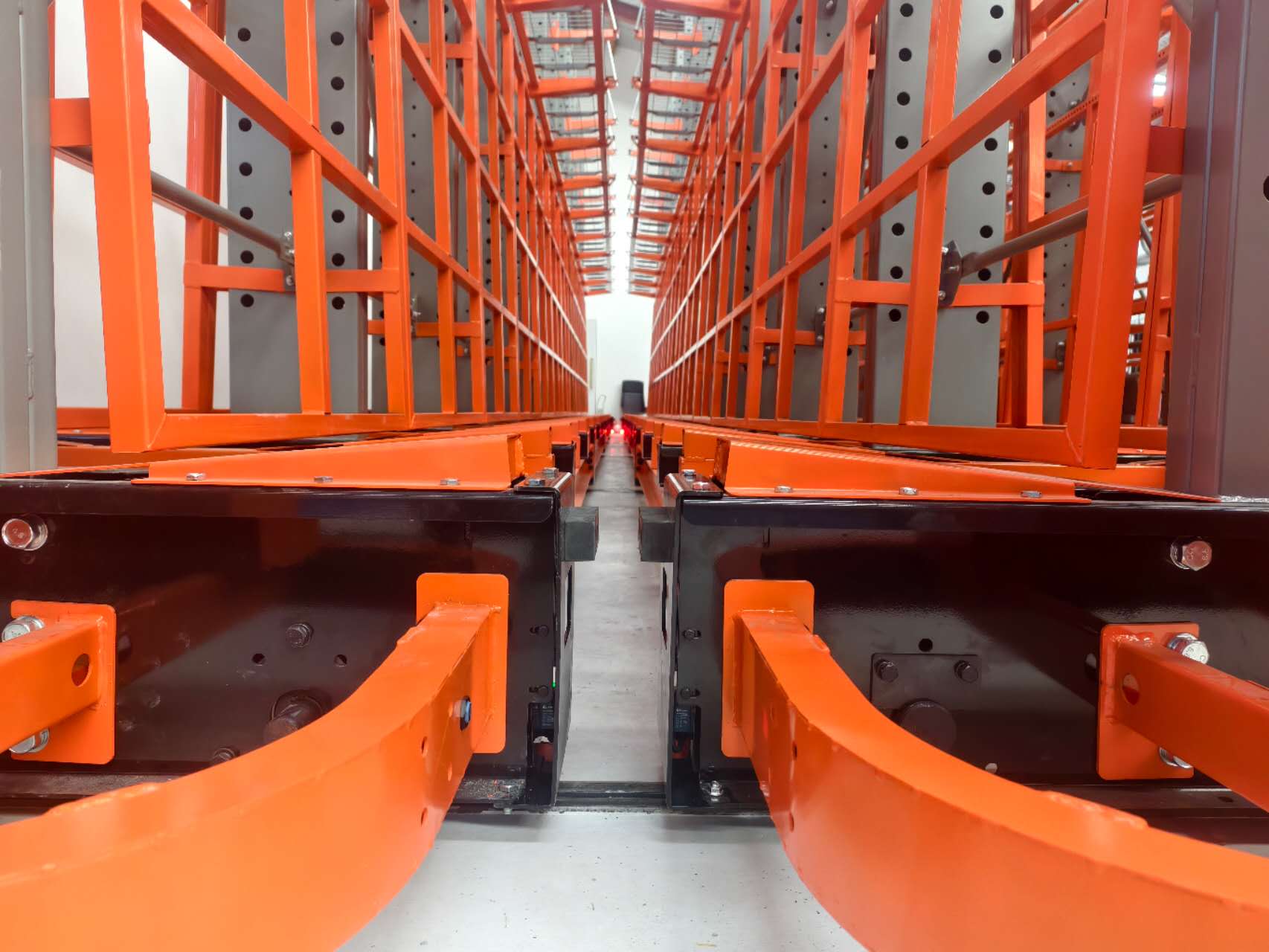

The mobile cantilever racking sysetm is equipped with an electric drive module independently developed by Botro-Racking, which supports single column and multi column movement, meeting different usage scenarios. For the needs of goods counting and precise pickup, Equal Spacing mode can be used. The 4-meter main aisle can be evenly divided into 5 independent small aisles, making personnel operations more convenient and goods zoning management more accurate.
Mobile racking system have similar structure with conventional pallet racking, but Mainly composed of three parts, racking system, drive system and PLC control system.
1. Column Specifications
Botro’s column has two type holes: diamond and teardrop shape.
The first one is China Style, pitch 75mm, the last is America style, pitch is 76.2mm.

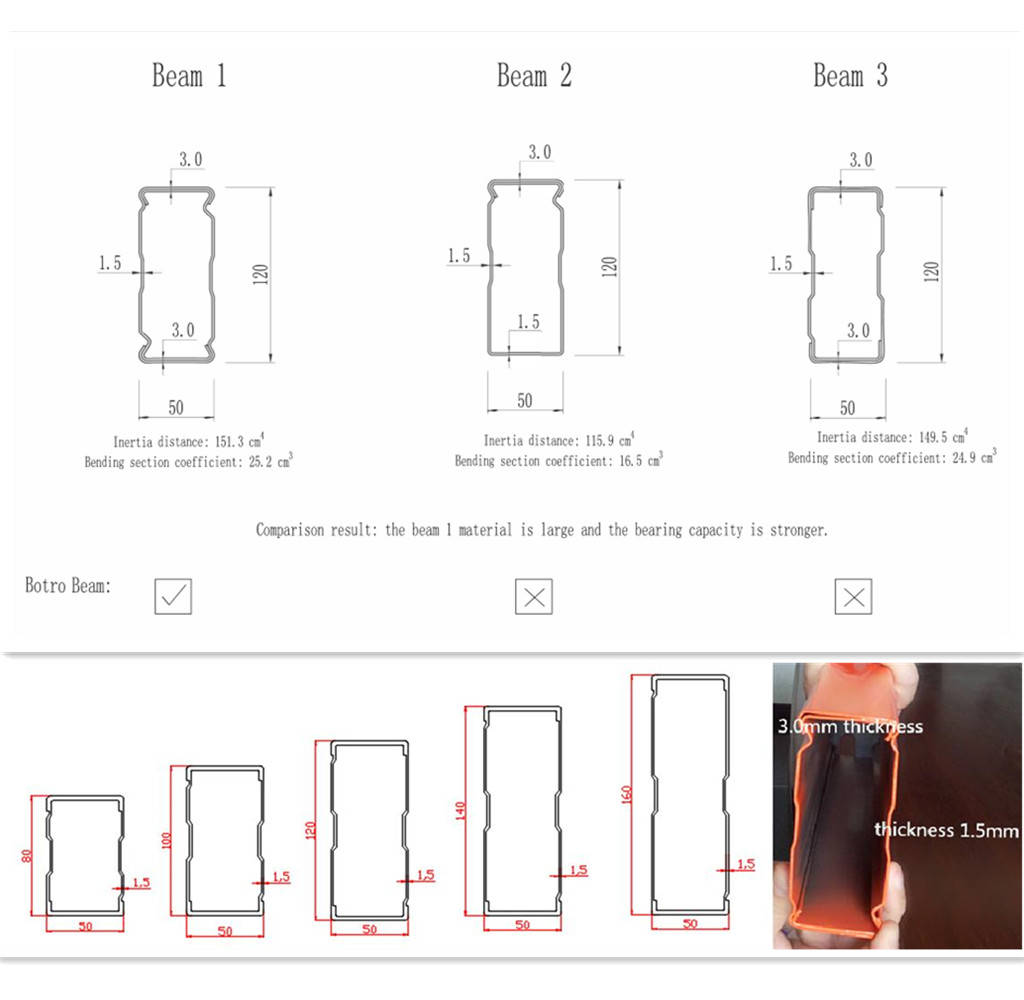

2. How to Choose Good Capacity Box Beam？
When you are inquiry about versatile pallet racking system, you will find that the price will vary greatly sometimes. At this time, you should reconsider the reasons, maybe the materials gap.
Please see the following three types of beams are widely available on the market today. A comparison of the data, you will find the best load capacity is beam 1, beam 1 is our company offer.

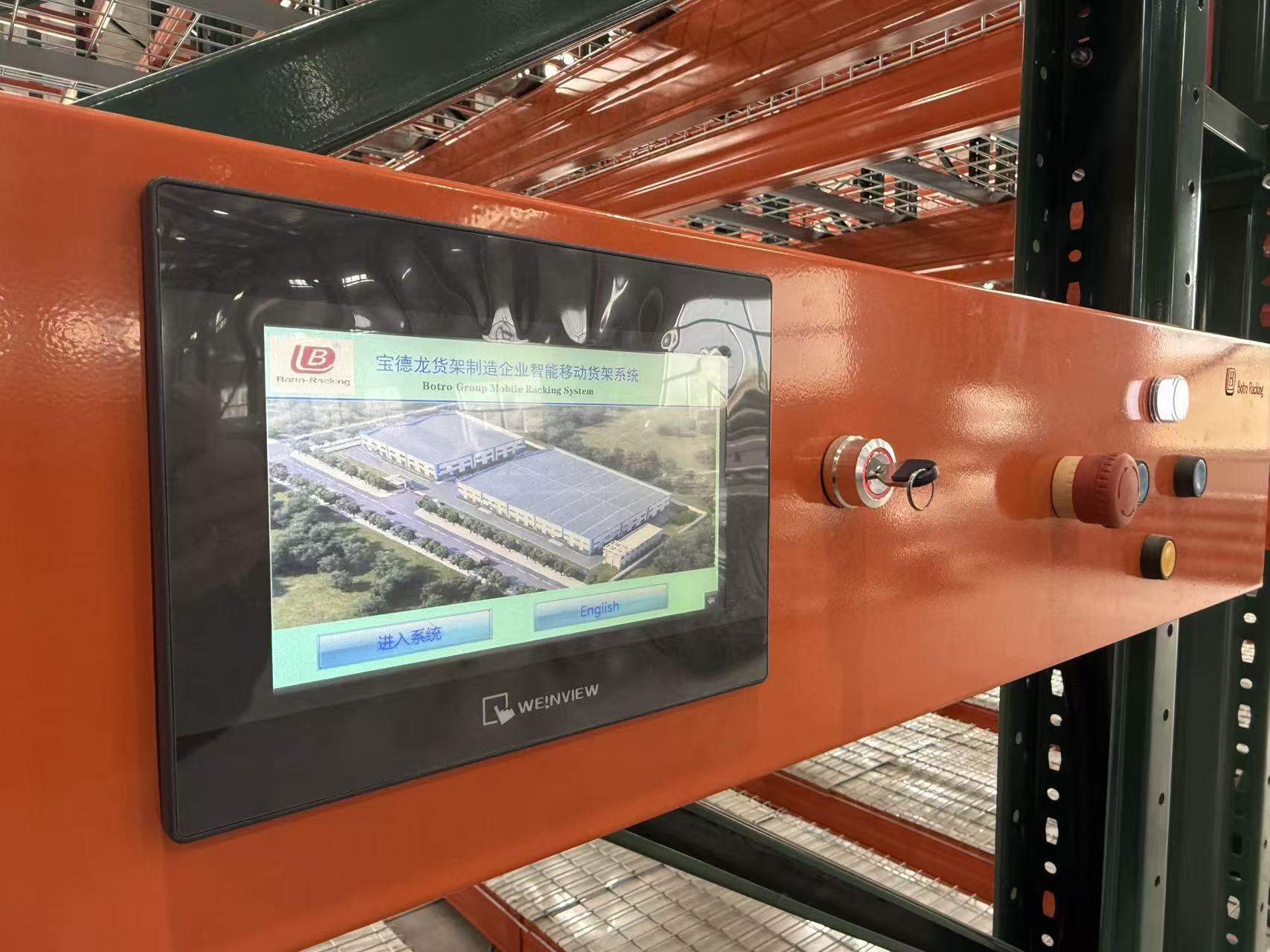

3. Operation Panel
The operation panel enables the free movement of each group of racking.

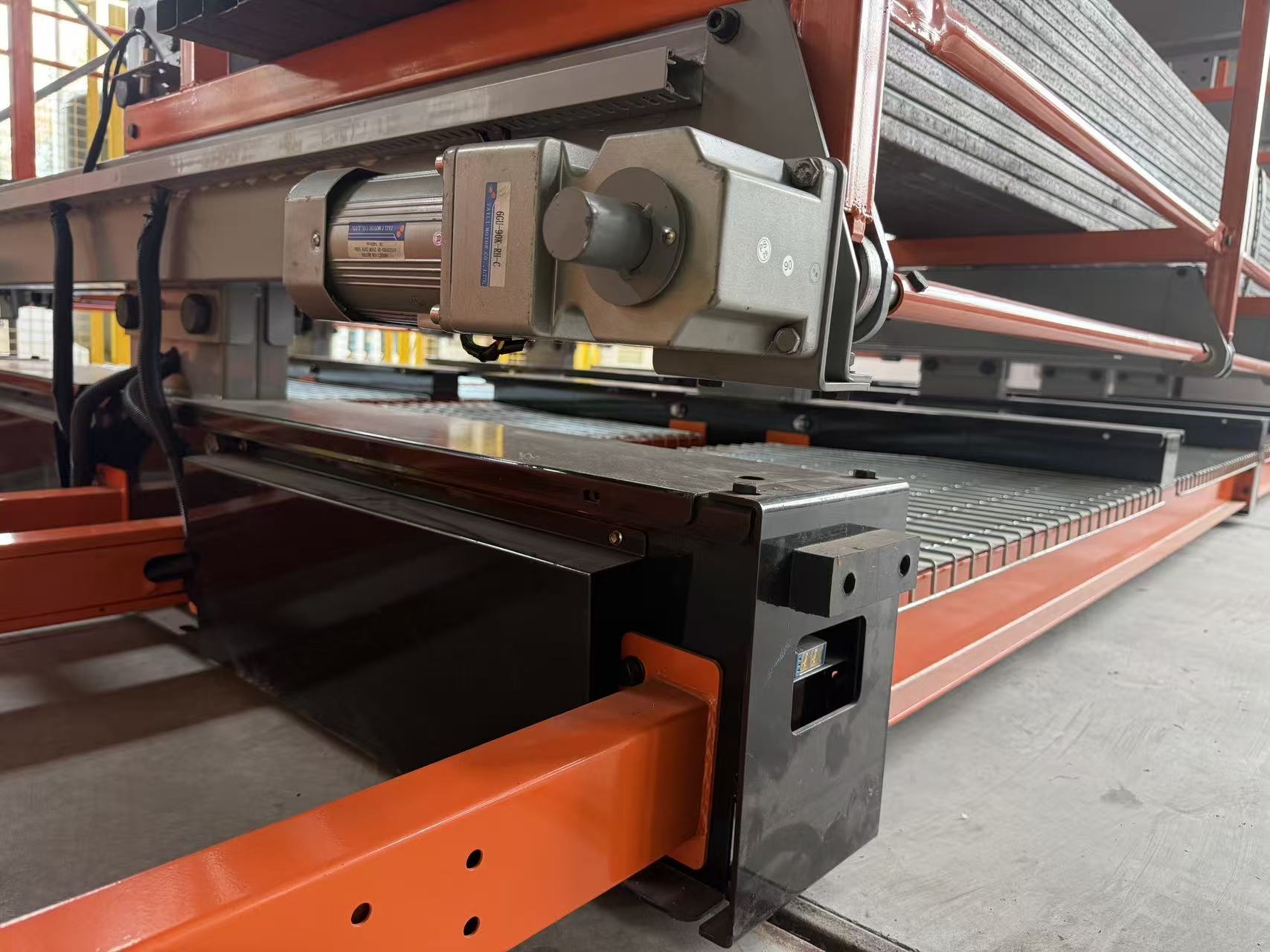

4. Drive system
